410 LK

c'joy
Discover Technical Data
c'joy / 410 LK
Discover Technical Data
cjoy_410lk_2025.svg

410 LK

cjoy_420qsh_2025.svg

c´joy 420 QSH

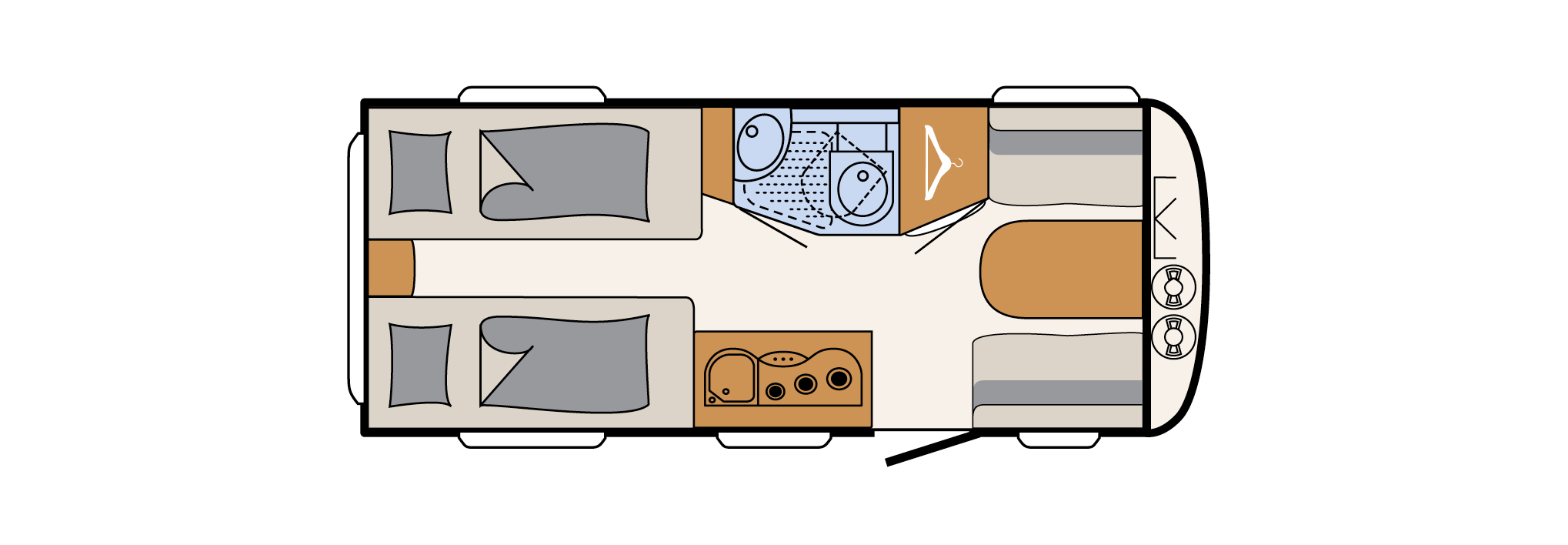

 cjoy_460le_2025.svg

c’joy 460 LE

 cjoy_480fsh_2025.svg

c’joy 480 FSH

 cjoy_480qlk_2025.svg

c’joy 480 QLK
Dealer
Your way to 410 LK
c'joy 410 LK
Price (incl. VAT) 18999a)
Standard chassis Lightweight chassis, 1100 kg
Overall length, approx. 622
Body length approx. 499
Overall width, approx. 212
Overall height, approx. 265
Circumferential dimension awning approx. 914
Headroom in living area, approx. 198
Thickness floor / side walls / roof 38 / 28 / 28
Tire size 185 R14C 8PR
Bed dimension: Front bed, L x W, approx. 190 x 140 - 115
Bed dimension: Rear bed, L x W, approx. 190 x 65 / 190 x 70 / 2x 190 x 70 (○) / 190 x 60 (○)
Sleeping berths standard / max. 4 / 5 (○)
Mass in running order (+/-5%)* 950 (903 to 998)*
Manufacturer-specified mass for optional equipment* 60
Technically permissible maximum laden mass* 1100
Heating S 3004, 3.5 kW Gas
Refrigerator volume (thereof freezer), approx. 131,5 (15)
Fresh water tank capacity, total/ Fresh water tank capacity at driving filling 12 / 12
Sockets: 12 V / 230 V / USB 0 / 3 / 0
a) This is a recommended retail price based on German retail prices. Prices in other countries may differ due to currency conversion and country-specific VAT, fees and import duties. For the latest information, please always enquire with a local dealer about the prices applicable in your country.

* The specified mass in running order is a default value defined in the type-approval procedure. Due to manufacturing tolerances, the actual weighed mass in running order may deviate from the value stated above. Deviations of up to ± 5 % of the mass in running order are legally permissible and possible. The permissible range in kilograms is given in brackets after the mass in running order.  The manufacturer-specified mass for optional equipment is a calculated value for each type and layout that Dethleffs uses to determine the maximum weight available for factory-fitted optional equipment. The limitation of optional equipment is intended to ensure that the minimum pay-mass, i.e. the legally prescribed free mass for baggage and retrofitted accessories, is actually available for the vehicle load capacity of the vehicles delivered by Dethleffs.  The real weight of your vehicle ex works can only be determined when it is weighed at the end of the line. If, in exceptional cases, the weighing shows that the actual load capacity falls below theminimum pay-mass despite limiting the optional equipment due to a permissible weight deviation, we will check together with your trade partner and you whether we should, for example, increase the load capacity of the vehicle, reduce the number of seats or remove optional equipment before delivering the vehicle.  The technically permissible maximum laden mass of the vehicle and the technically permissible maximum mass on the axle must not be exceeded.
Length
622 cm
Width
212 cm
Height
265 cm
Sleeping berths max.
5
Technically permissible maximum laden mass
1.100 kg
Price
-

Layout 410 LK

Children's bunk beds well and safely stored in the rear, not directly in the entrance area

Up to 5 berths at an an overall length of 6.22 m (3-person bunk bed optionally available).

131.5-liter refridgerator incl. 15-liter freezer compartment standard

Dethleffs Connect - "SIU-Ready", i.e. cabling for connecting the SIU control unit is already installed, SIU control unit and other sensors available from Dethleffs Original Accessories.

One of the narrowest caravans in its class at only 2.12 m wide

360°
360° view

The 360-degree images are designed to provide you with an impression of the space. Please be aware that upholstery and wood decors are sometimes displayed inaccurately for technical reasons.

Exterior view

Don't be afraid of narrow passages: with a width of just 212 cm, it is very easy to ride

The perfect entry-level caravan: attractively priced and everything you need inside and out

Protects you from bad weather: roof, front and rear made of robust GRP

Real lightweight: With the appropriate towing vehicle, a class B driving licence is often sufficient

You don't have to do without anything: The large storage compartments there is room for everything you need

Interior

  • Pure holiday feeling

    Additional sleeping berths can be created by converting the seating lounge

  • Pure holiday feeling

    Practical: the seating lounge can easily be converted to a sleeping area • 480 QLK | Timor

  • Pure holiday feeling

    A hearty breakfast in the cosy seating lounge is a great way to start the day and ensures a successful holiday

  • On holiday at last!

    Bonne nuit: enjoy restful sleep in a comfortable cross-bed • 480 QLK | Timor

  • On holiday at last!

    Up to three sleeping berths are optionally available in the bunk bed in the rear of the c’joy • 480 QLK | Timor

  • Refreshment

    The c’joy is equipped with an attractive sink • 480 QLK | Timor

  • Refreshment

    In the c’joy you don’t need to make do without a bathroom – you will find everything you need for a refreshing start to the day • 460 LE | Timor

  • Small kitchen, big potential

    Compact and practical: with 3-burner hob, stainless steel sink and abundant storage space Illustration shows a non-standard hob • 480 QLK | Timor

  • Small kitchen, big potential

    Many models include a large 131.5-litre compressor fridge with a 15-litre freezer • 480 QLK | Timor

Specification

1
  • Sustainable fabrics made from 100% recycled PET bottles
  • c’joy goes digital! The innovative SIU system (option) sends important vehicle information to your mobile phone!
  • 2-person bunk bed, optionally also available with a 3-person bunk bed (depending on layout)
  • AirPlus – perfect air circulation in the interior with rear ventilation of the overhead lockers and sideboards
  • Compressor fridge as standard
  • Cold foam mattresses as standard on all fixed single and double beds
  • With a width of just 2.12 m, the c’joy fits through the narrowest passages
  • Openable and insulated double-glazed windows with blackout and mosquito blinds

Variety of choice

Timor
Tindari Bora

Dimensions

1
2
3
4

410 LK

1 Length 622 cm
2 Height 265 cm
3 Width 212 cm
4 Headroom 198 cm

Weight

Technically permissible maximum laden mass
1.100 kg
Mass in running order
950 kg
Manufacturer-specified mass for optional equipment
60 kg
Electrical installation
Standard equipment
Compact power distribution unit with 230V safety device and 12V fuse box in wardrobe incl. powerful 340W transformer
CEE external output socket for 230V on-board electrics
12 V power supply throughout vehicle
Awning light 12V
Optional equipment
Additional lighting through LED spotlights
USB port for spotlight bar
Heating
Standard equipment
Gas heating S 3004 with automatic ignition
Optional equipment
Ultraheat additional heating for S 3004, electric 220 V
Fan 12V for S 3004
Hot air system
Water supply
Standard equipment
Electric water supply
Fresh water canister 12 l
Optional equipment
Fresh water tank 44 l
Mobile 22 l waste water tank
Hot water supply
Shower equipment with shower fittings and curtain
Gas supply
Optional equipment
Gas detection system

Downloads

Weitere Fahrzeuge der Baureihe c'joy

  • Sleeping berths
  • Bed types
  • Length
  • Number of seats
Result00
Filter

c'joy
c´joy 420 QSH



Technically permissibile maximum laden mass*
1.100 kg
Sleeping berths max.
3
Height
265
Length
625

c'joy
c’joy 460 LE



Technically permissibile maximum laden mass*
1.200 kg
Sleeping berths max.
3
Height
265
Length
675

c'joy
c’joy 480 FSH



Technically permissibile maximum laden mass*
1.200 kg
Sleeping berths max.
3
Height
265
Length
708

c'joy
c’joy 480 QLK



Technically permissibile maximum laden mass*
1.300 kg
Sleeping berths max.
6
Height
265
Length
714

a) All prices are recommended retail prices in EUR, based on the German retail prices. Prices in other countries may differ due to currency, country specific VAT, country specification, transportation charges or import duties. Your local dealer informes you about the applicable prices, taxes and duties for your country.

*The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.
